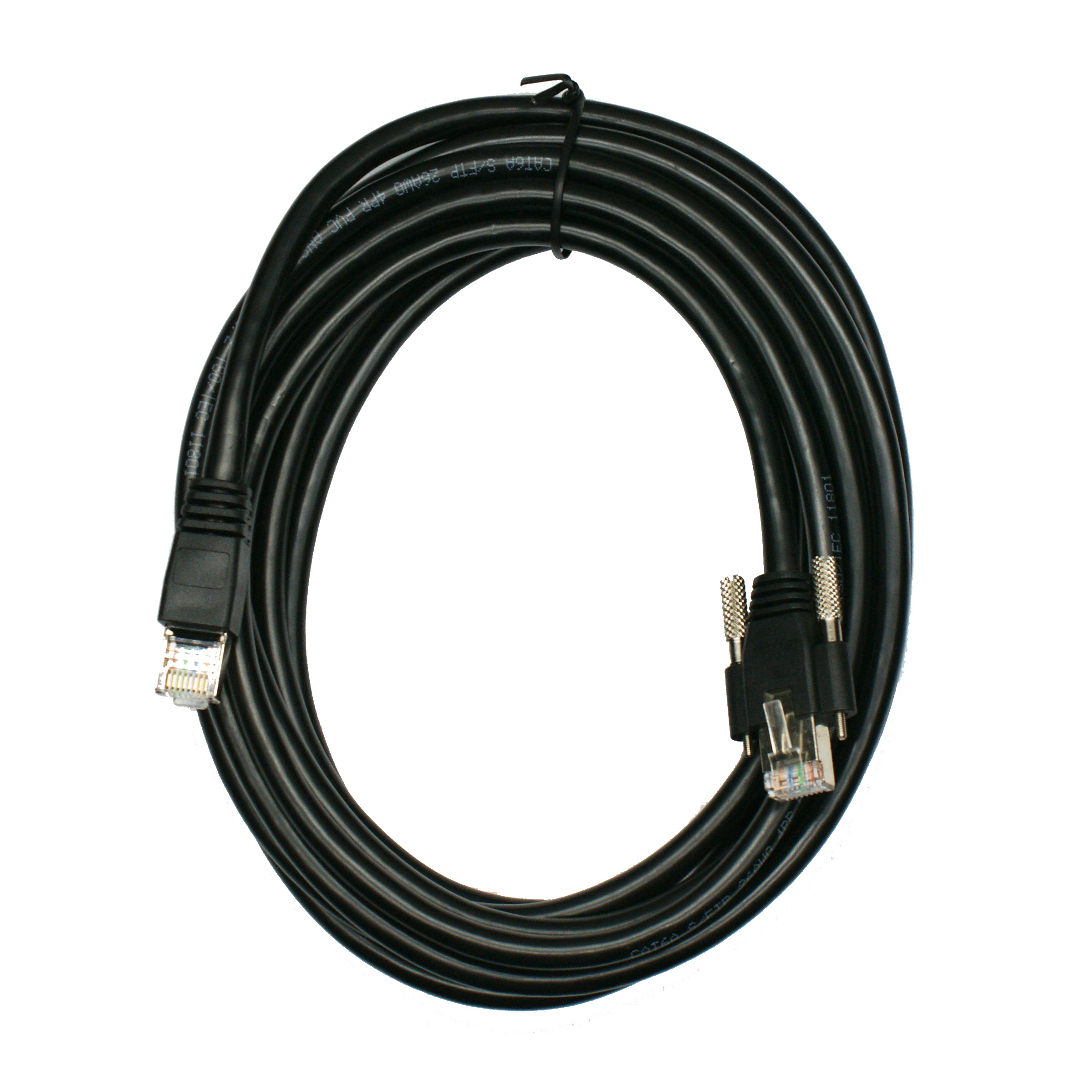

Gigabit network cable: 3M / 5M

Resolution

5MP

Type

5MP 1/2.8" GigE Camera

Sensor Type

CMOS

Sensor

IMX335

Mono/Color

Mono

Shutter

Rolling Shutter

Resolution(HxV)

2592x1944

Frame Rate

24fps

Sensor size

1/2.8"

Pixel size

2.0µm x 2.0µm

SNR

38.1dB

Gain

15dB

Dynamic Range

90 dB

Exposure Time

0.0617-30000ms

Sensitivity

1.96V/lux-s

Pixel Bit depth

8/10bit

Pixel Format

Mono 8/10 Bayer 8/10

Binning

Supports 1×1，1×2，2×1，2×2

Image buffer

128M Bytes

User parameter area

4K Bytes

Capture mode

Continuous/Soft trigger/Hard trigger

Data Interface

GigE @ 1Gbps

transmission distance

100m

Digital I/O

6-pin connector for power supply and I/O: One opto-isolated input, and two opto-isolated output

Power supply

12 VDC, supports PoE power supply

Power consumption

＜3.0 W@12 VDC

Dimension

29mm x 29mm x 43mm（excluding len holder and interface）

Lens mount

C-mount / CS-mount

Ingress protection

IP30

Weight (typical)

66g

Temperature

Working temperature: 0 °C to 50 °C (32 °F to 122 °F)

Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity

20% to 80% RH, without condensation

Driver

DirectShow、Twain、Halcon、OCX

Software support

Halcon、OpenCV、LabView、Matlab

Development languages

C/C++、VB6、VB.net、Delphi6、C#、QT、C++Builder、LabView、Python

Operating system

Windows、Linux、Android、MacOS

Compatibility

GigE Vision 、GenICam
