UGSMT503GM

Cost-effective

Having the best product cost-effectiveness in China

one-to-oneservice

Provide one-on-one professional consultation

Requirement customization

Customize diversified products according to actual needs

provide home delivery service

Convenient and fast delivery to home

24-hour after-sales service

24-hour after-sales service with peace of mind guarantee

Inquiry Now

Product

Parameter

Download

support external triggering, flash synchronization
CMOS process, global shutter
Gigabit network interface with locking seat, effective transmission distance of 100 meters
Supports Windows, Android, Linux, and IOS systems
With 128M frame cache, it supports multiple cameras to work simultaneously

Product Features CHARACTERISTIC

Mechanical specifications MECHANICALSPECIFICATION

Specifications and Sizes UGS.jpg

Related accessoriesACCESSORY

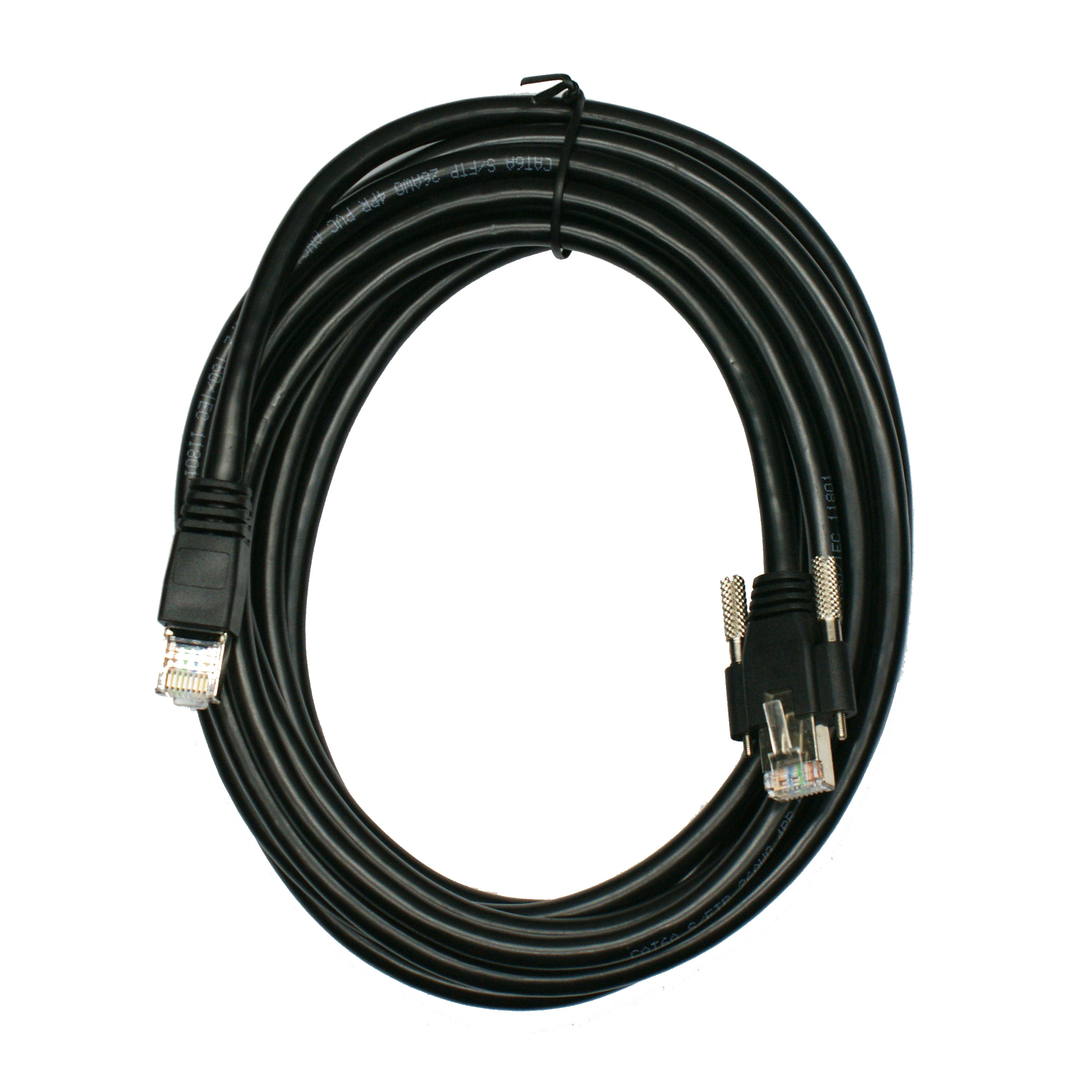

Gigabit network cable: 3M / 5M	6Pin HRS aviation head trigger line: 2M	12 VDC Power supply: 2.5M

fps font-size: 14px;">128M Bytes

Programmable function

continuous/soft trigger/hard triggerdigital I/OPower supplyLens interfaceWeight

Model	Product model	UGSMT503GM
Model	Product name	5 million 2/3" Gigabit network industrial camera
pixel	pixel	5 million
CMOS
Sensor model	XGS5000
Black-white/color	Mono
Shutter type	Global shutter
Resolution	2592x2048
maximum fps rate	20fps
Target surface size	2/3
Cell size	3.2µmx3.2µm
Sign-to-noise ratio
8times
dynamic range
Shutter time
Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">Scan style="font-family: arial,helvetica,sans-serif; font-size: 14px;">Scan style="font-width: 0px 1px 1px 0px; border-style: none solid solid solid none; border-color: rgb(238, 236, 225);background-color: transparent;">
pixel bit depth
pixel format	Mono 8/10/12
Binning	Support 1×1,1×2,2×1,2×2
Function	Image size (ROI), photo, Shutter time, contrast, satisfaction, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
Shutter control	Automatic/manual/support Shutter area settings
Custom data area	4K Bytes
Collection method
White balance	White-free balance operation
	Electrical characteristics	Data interface	GigE @ 1Gbps
Transmission distance	100 meters
digital I/O	6-pin Hirose connector provides power supply and I/O: 1 optocoupler isolation input (Line0), 1 optocoupler isolation output (Line1)
12 VDC, supports PoE power supply
Typical power consumption	＜3.0W @12VDC
Design	Appearancedimensions	29mmx29mmx43mm (excluding lens holder and interface)
	C-mount / CS-mount
	IP protection level	IP30
	66g
	temperature	Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
	Humidity	20% ~ 80%RHNo condensation
Software support	Driver	Support DirectShow components, Twain components, Halcon-specific components, OCX components
	Software support	Halcon, OpenCV, VisionPro, LabView, Matlab,etc.
	Development language	C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python
	System support	Windows, Linux, IOS, Android
				Protocol/Standard	GigE Vision, GenICam
