• Support external triggering, flash synchronization

• CMOS process, 1.3 million pixels,Global shutter

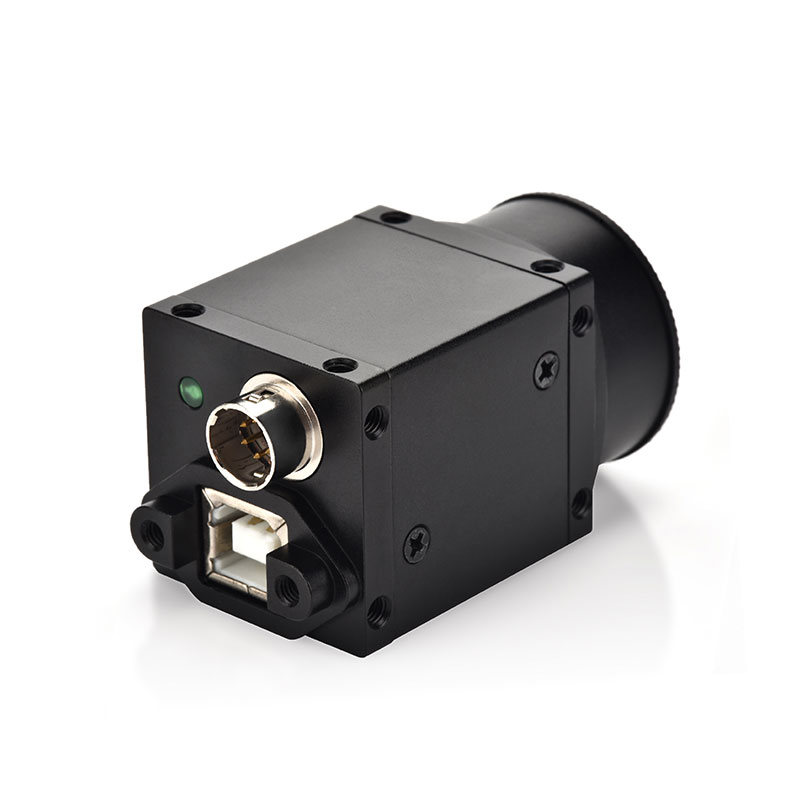

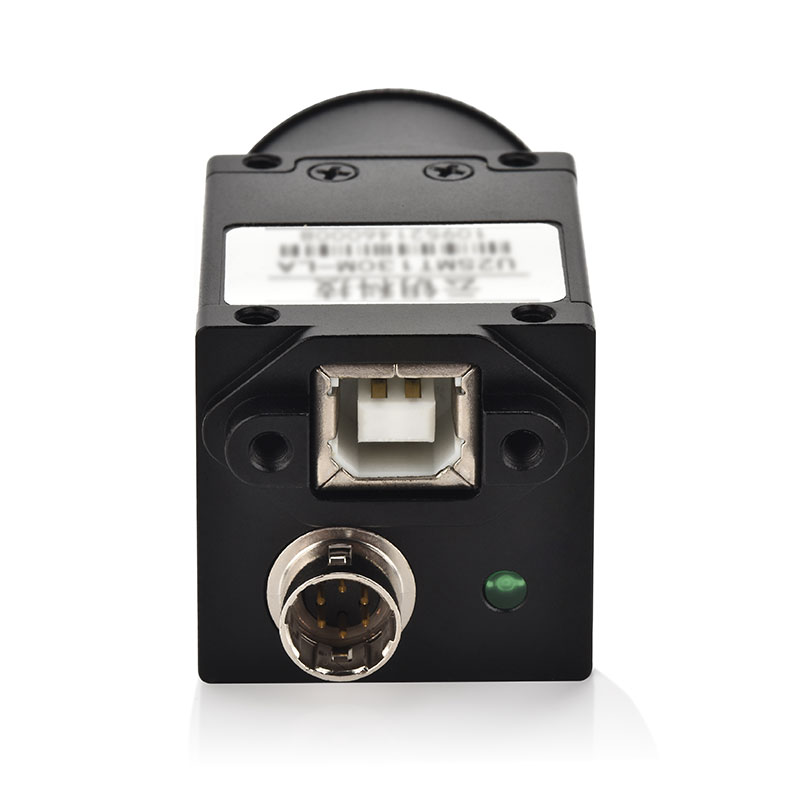

• USB2.0 interface has locking seat, plug and play without power supply

• Support WinXP/7/8/10, Android and Linux systems

• With 128M frame cache, supports multiple cameras to work simultaneously

Resolution

1.3MP

Type

1.3MP 1/1.8" USB2.0  Camera

Sensor Type

CMOS

Sensor

EV76C560

Mono/Color

Color

Shutter

Global Shutter

Resolution(HxV)

1280x1024

Frame Rate

30fps

Sensor size

1/1.8"

Pixel size

5.3µm x 5.3µm

SNR

41dB

Gain

8dB

Dynamic Range

62dB

Exposure Time

0.016-30000ms

Sensitivity

7.4V/lux-s

Pixel Bit depth

8/10bit

Pixel Format

Mono 8/10 Bayer 8/10

Binning

Supports 1×1，1×2，2×1，2×2

Image buffer

32M Bytes

User parameter area

4K Bytes

Capture mode

Continuous/Soft trigger/Hard trigger

Data Interface

USB2.0 @ 480Mbps

transmission distance

5m

Digital I/O

I/O: One opto-isolated input, and two opto-isolated output

Power supply

5VDC,USB2.0 power supply

Power consumption

＜3.0 W@5 VDC

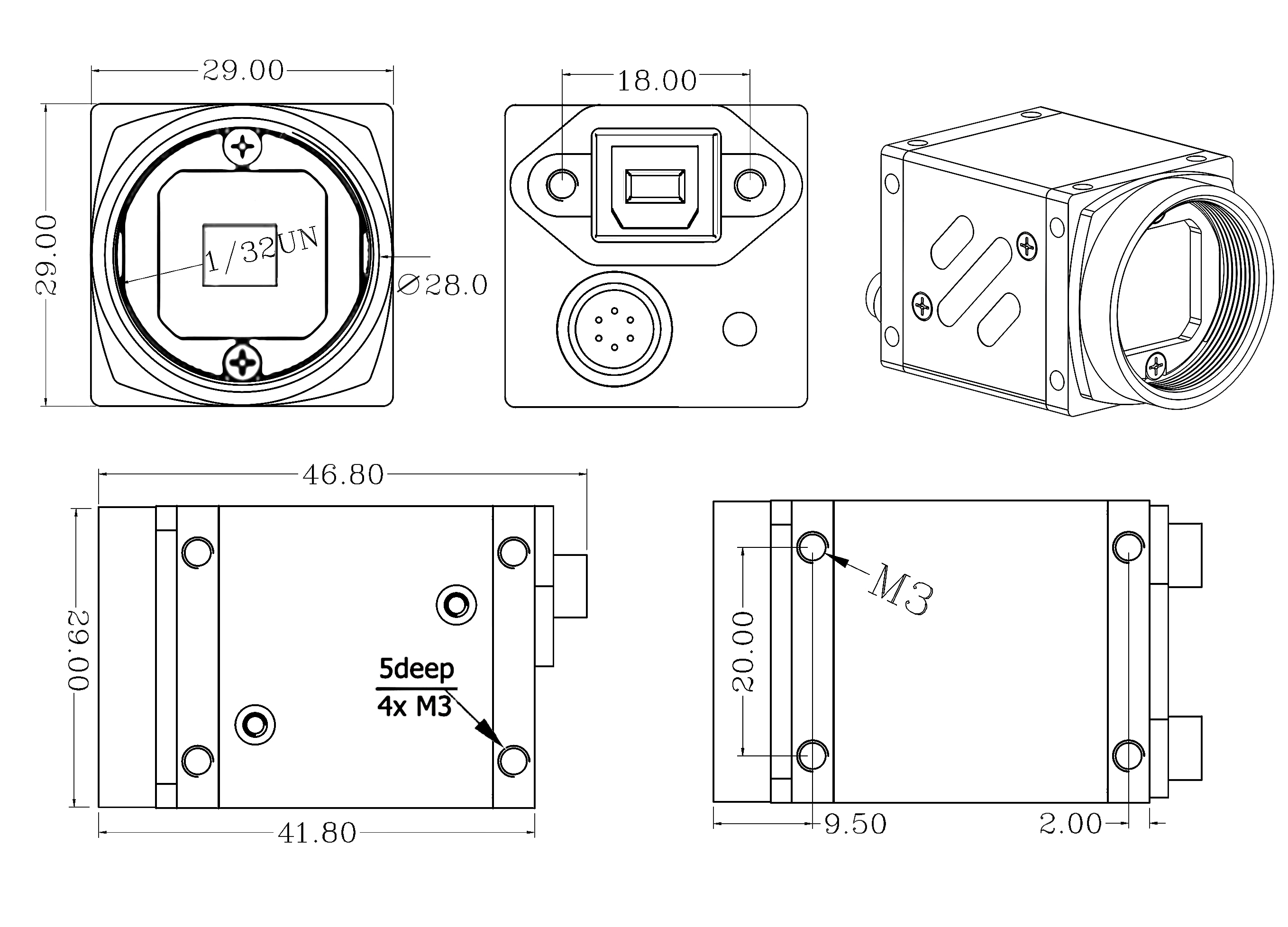

Dimension

29mm x 29mm x 35mm（excluding len holder and interface）

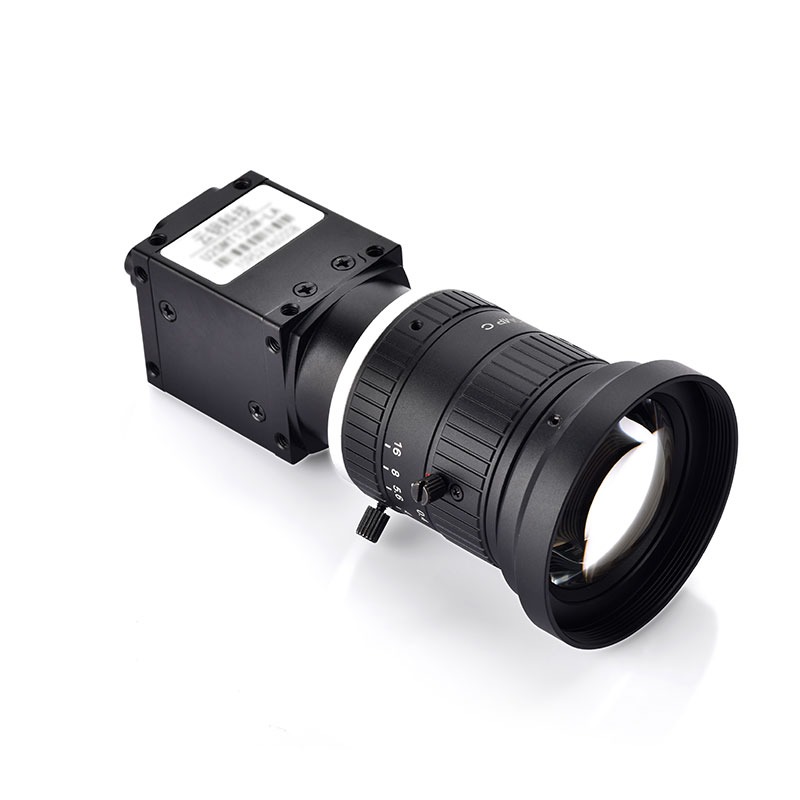

Lens mount

C-mount / CS-mount

Ingress protection

IP30

Weight (typical)

70g

Temperature

Working temperature: 0 °C to 50 °C (32 °F to 122 °F)

Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity

20% to 80% RH, without condensation

Driver

DirectShow、Twain、Halcon、OCX

Software support

Halcon、OpenCV、LabView、Matlab

Development languages

C/C++、VB6、VB.net、Delphi6、C#、QT、C++Builder、LabView、Python

Operating system

Windows、Linux、Android、MacOS

Compatibility

Directshow、Twain
