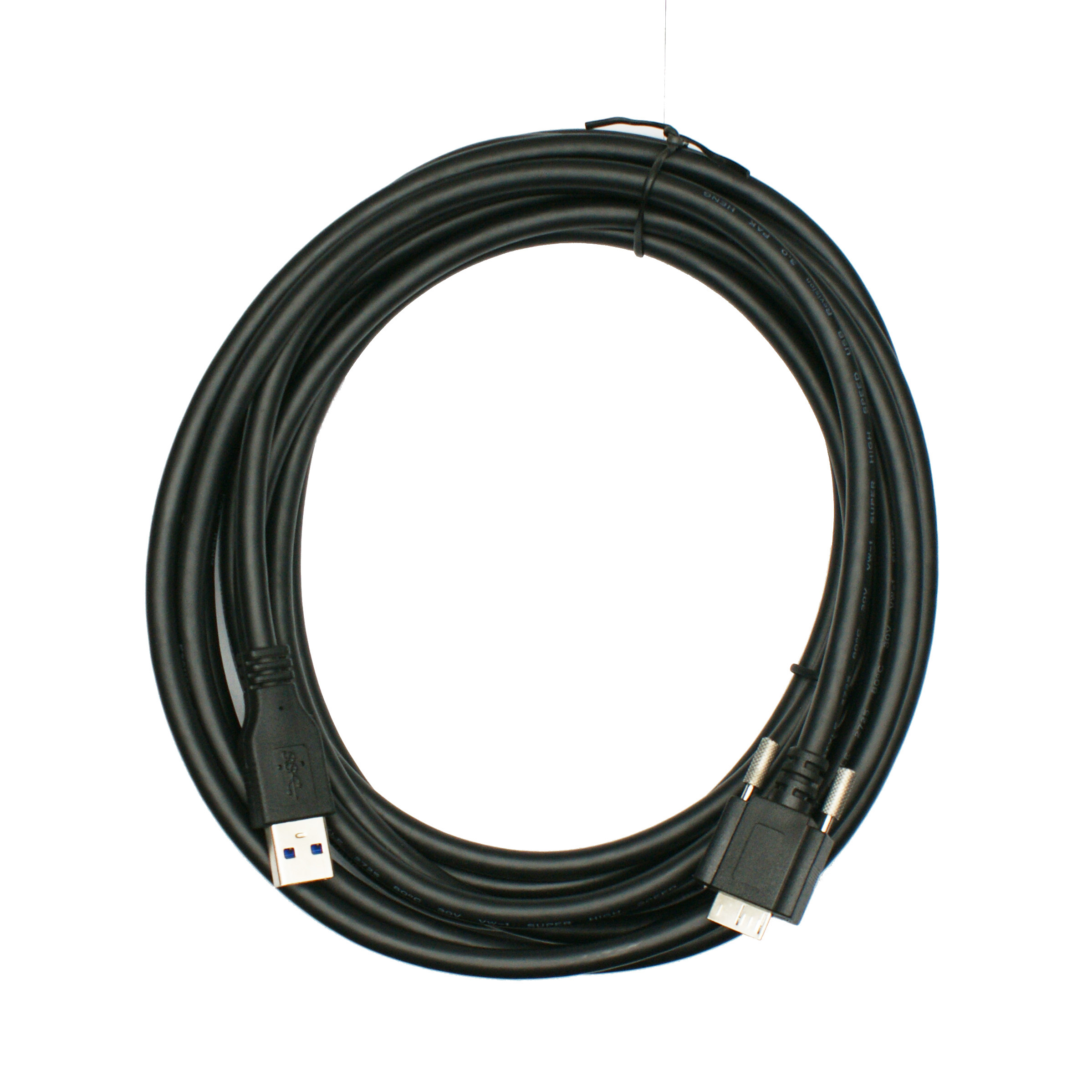

USB3.0 data cable: 1.5M/3M

Resolution

1.3MP

Type

1.3MP 1/2" USB3.0  Camera

Sensor Type

CMOS

Sensor

Python1300

Mono/Color

Color

Shutter

Global Shutter

Resolution(HxV)

1280x1024

Frame Rate

210fps

Sensor size

1/2"

Pixel size

4.8µm x 4.8µm

SNR

39.8dB

Gain

15dB

Dynamic Range

59.6dB

Exposure Time

0.062-3000ms

Sensitivity

7.3 V/lux-s

Pixel Bit depth

8/10bit

Pixel Format

Mono 8/10 Bayer 8/10

Binning

Supports 1×1，1×2，2×1，2×2

Image buffer

128M Bytes

User parameter area

4K Bytes

Capture mode

Continuous/Soft trigger/Hard trigger

Data Interface

USB3.0 @ 5Gbps

transmission distance

5m

Digital I/O

I/O: One opto-isolated input, and two opto-isolated output

Power supply

5VDC,USB3.0 power supply

Power consumption

＜3.5 W@5 VDC

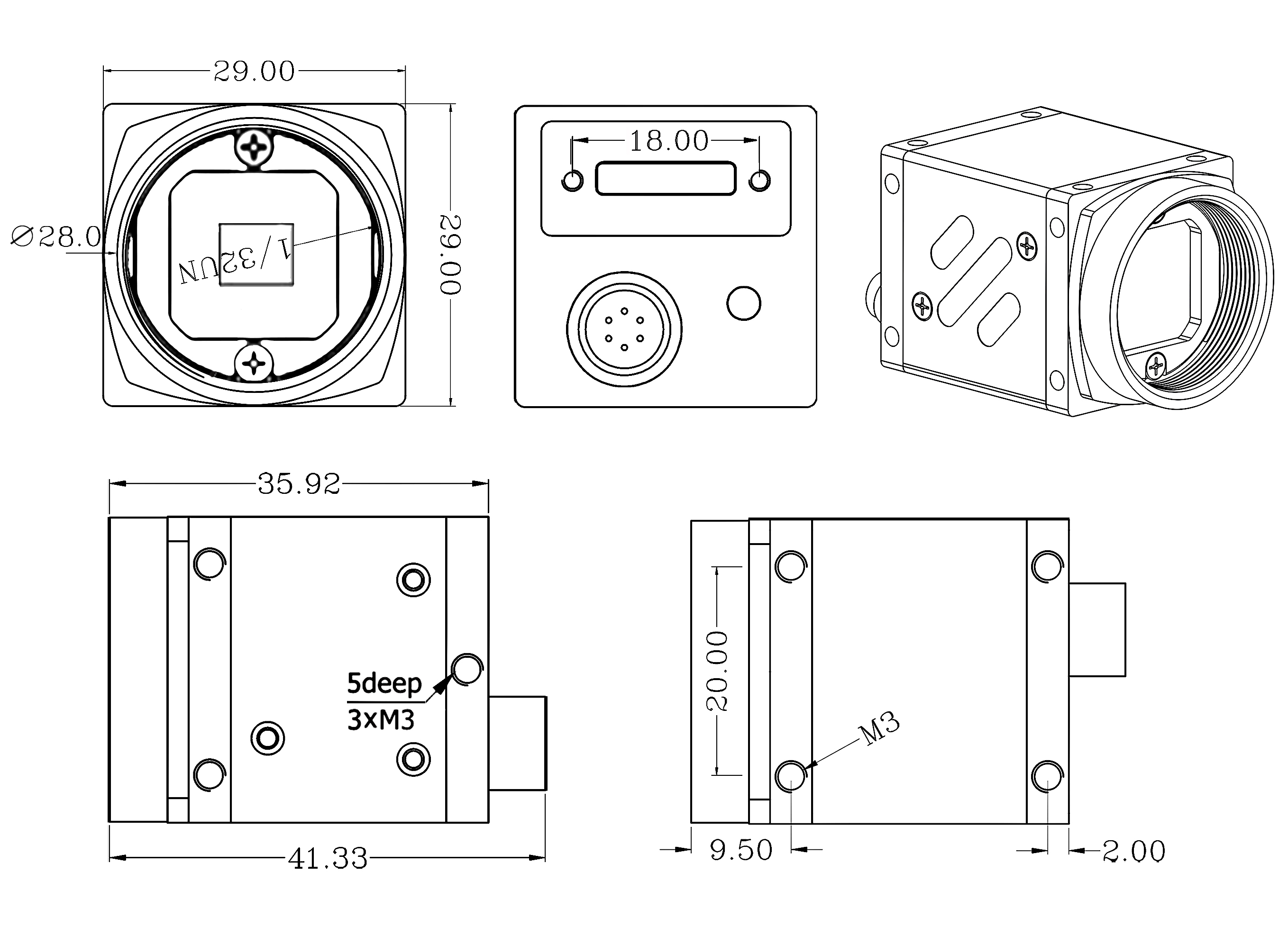

Dimension

29mm x 29mm x 29mm（excluding len holder and interface）

Lens mount

C-mount / CS-mount

Ingress protection

IP30

Weight (typical)

55g

Temperature

Working temperature: 0 °C to 50 °C (32 °F to 122 °F)

Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)

Humidity

20% to 80% RH, without condensation

Driver

DirectShow、Twain、Halcon、OCX

Software support

Halcon、OpenCV、LabView、Matlab

Development languages

C/C++、VB6、VB.net、Delphi6、C#、QT、C++Builder、LabView、Python

Operating system

Windows、Linux、Android、MacOS

Compatibility

USB3 Vision，GenlCam
