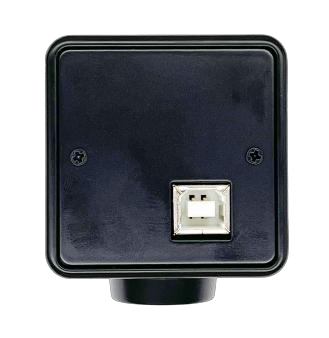

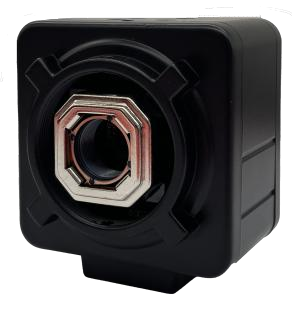

U2BMT501M-AF

AF series is a focusable industrial camera developed by our company to apply to the camera application field with variable working distance, object size and lighting conditions. The AF series is developed by our company to apply to variable working distance, object size and lighting conditions. The AF series is developed by our company to apply to variable working distance, object size and lighting conditions. The AF series is developed by our company to apply to the camera application field. The AF series is developed by our company to apply to the camera application field. The AF series is developed by our company to apply to the camera application field. The AF series is developed by our company to apply to the camera application fieldCN;color:rgb(0,0,0);font-weight:bold">Combined with the implementation of automatic focus function, it provides higher flexibility than fixed focal length cameras. Even if the working distance changes, can present excellent image quality and best clear images.This series of cameras is particularly suitable for inspection, classification, process control and metrology tasks.

Share:

Product

Parameter

Download

CHARACTERISTIC
  • Support external triggering, flash synchronization

  • Automatic focus function can be realized

  • CMOS process, 5 million pixels, scroll shutter

  • Supports Windows, Android, Linux, and MacOS systems


  • MECHANICAL SPECIFICATION


    Related accessoriesACCESSORY

    USB2.0 data cable: 3M / 5M

    6Pin HRS aviation head I/O trigger line: 2M /5M




    1/2.8" Cell size125g
    ModelProduct modelU2BMT501M-AF
    Product name5 million 1/2.5"  USB2.0 autofocus industrial camera
    Performancepixel5 million
    Sensor typeCMOS
    Sensor modelIMX335
    Mono/colorMono
    Shutter typeScroll shutter
    Resolution2592Hx1944V
    maximum fps rate7.5fps
    Target surface size
    2.0μmx2.0μm
    Sign-to-noise ratio38.1dB
    Gain (multiple)15 times
    Dynamic range90dB
    Shutter time3225-6000ms
    Sensitivity1.96V/lux-s
    pixel bit depth8/10bit
    pixel formatMono 8/10/12
    BinningSupport 1×1, 1×2, 2×1, 2×2
    fps cacheOwn cache, supports multiple cameras to work simultaneously
    FunctionProgrammable FunctionImage size (ROI), photo, Shutter time, contrast, saturation, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
    Shutter controlAutomatic/manual/support Shutter area settings
    User parameters2 32-byte custom serial numbers, maximum 4096-byte data area
    Collection methodContinuous/soft trigger
    White balanceWhite-free balance operation
    Electrical characteristicsData interfaceUSB2.0 @ 480Mbps
    Transmission distance5m
    Digital I/OI/O: 1 optocoupler isolation input (Line0), 2 optocoupler isolation output (Line1)
    Power supply5 VDC supports USB2.0 power supply
    Typical power consumption<3.0W @ 5VDC
    DesignAppearance dimensions51mmx51mmx41mm (excluding lens holder and interface)
    Lens interfaceC-mount / CS-mount
    IP protection levelIP30
    weight
    TemperatureOperating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
    Humidity20% ~ 80%RH Non-condensation
    Software EnvironmentDriverSupport DirectShow components, Twain components, Halcon-specific components, OCX components
    Software supportCompatible with Halcon, OpenCV, LabView, Matlab
    Development languageC/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python
    System supportWindows, Linux, Android, MatOS
    Protocol/standardDirectshow, Twain
