| Product Features CHARACTERISTIC |
Mechanical specifications MECHANICALSPECIFICATION |
|
| Related accessoriesACCESSORY | ||

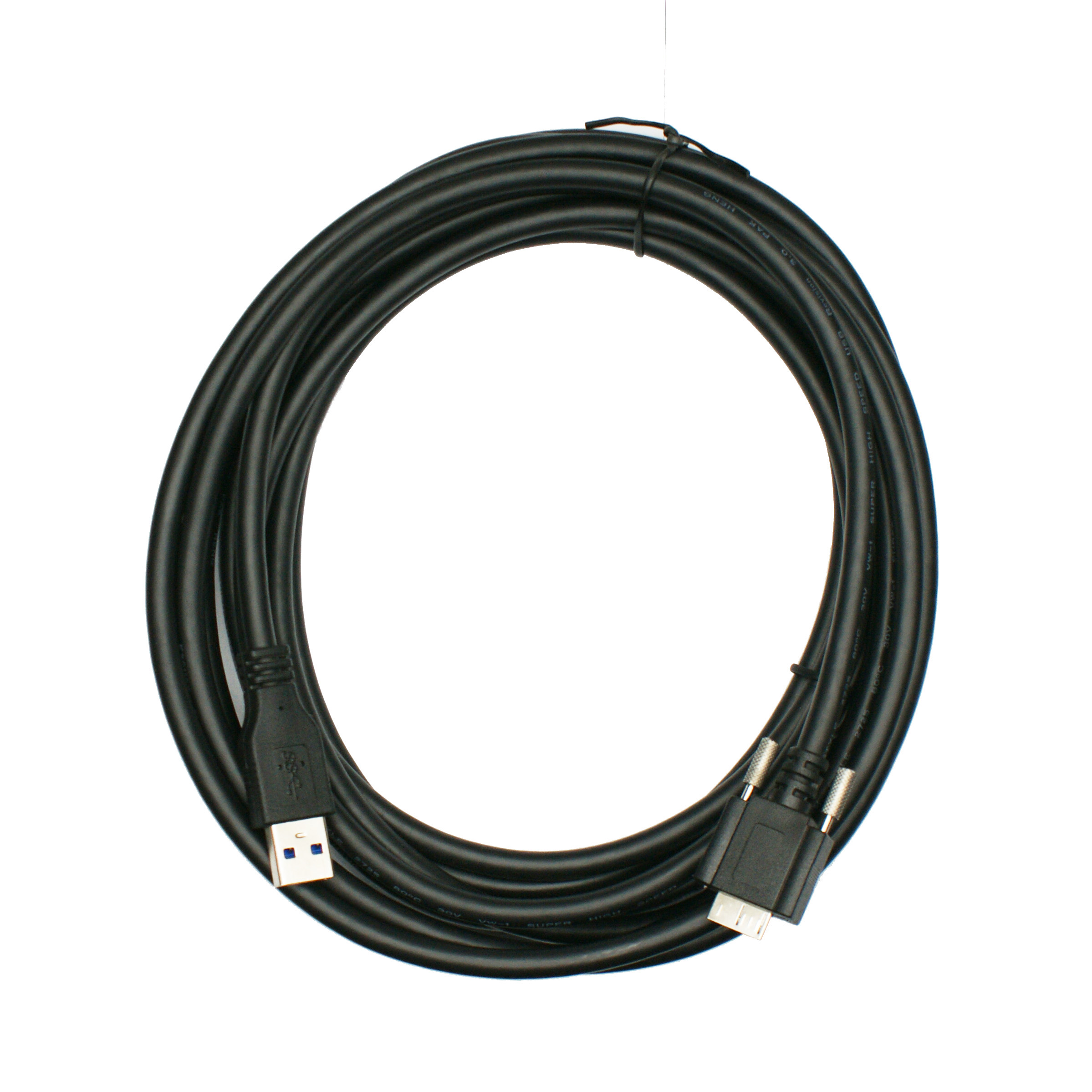

USB3.0 data cable: 1.5M/3M | 6Pin HRS aviation head trigger line: 2M | 12 VDC Power supply: 2.5M |
|
|
|
| Model | T3SMT130M | Product name | 1.3 million 1/2" USB3.0 industrial camera |
| pixel | pixel | 1.3 million |
| CMOS | Sensor model | MT9M001 |
| Black-white/color | ||
| Shutter type | Scroll shutter | |
| Resolution | 1280Hx1024V | |
| maximum fps rate | 30fps | |
| Target surface size | 1/2" | |
| Cell size | ||
| Sign-to-noise ratio | 45dB | |
| 15 times | ||
| Dynamic range | 68.2dB | |
| 0.0333-30000ms | ||
| 2.1V/lux-sec | pixel bit depth | |
| pixel format | Mono 8/10/12 | |
| Binning | Support 1×1,1×2,2×1,2×2 | |
| fps cache | 128M Bytes | |
| Function | Imagesize (ROI), photo, Shutter time, contrast, satisfaction, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control | |
| Shutter control | Automatic/manual/support Shutter area settings | |
| Custom data area | 4K Bytes | |
| Collection method | ||
| White balance | White-free balance operation | |
| Electrical characteristics | Data interface | USB3.0 @ 5Gbps |
| Transmission distance | ||
| DigitalI/O | I/O: 1 Optocoupler isolation input (Line0), 2Optocoupler isolation output(Line1) | |
| Power supply | 5 VDC, USB3.0 interface power supply | |
| Typical power consumption | <3.5W @ 5 VDC (USB powered) | |
| Design | Appearance dimensions | 29mmx29mmx29mm (excluding lens holder and interface) |
| Lensinterface | C-mount / CS-mount | |
| IP protection level | IP30 | |
| weight | 55g | |
| Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃ | ||
| Humidity | 20%~ 80%RH Non-condensation | |
| Software support | Driver | |
| Software support | Halcon, OpenCV, VisionPro, LabView, Matlab, etc. | |
| C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python and provide correspondingdevelopment routines | ||
| System support | Windows, Linux, IOS, Android | |
| Protocol/Standard | USB3 Vision, GenlCam |
