TGSMT500M

Cost-effective

Having the best product cost-effectiveness in China

one-to-oneservice

Provide one-on-one professional consultation

Requirement customization

Customize diversified products according to actual needs

provide home delivery service

Convenient and fast delivery to home

24-hour after-sales service

24-hour after-sales service with peace of mind guarantee

Inquiry Now

Product

Parameter

Download

support external triggering, flash synchronization
CMOS process, rolling shutter
Gigabit network interface with locking seat, effective transmission distance of 100 meters
Supports Windows, Android, Linux, and IOS systems
With 128M frame cache, it supports multiple cameras to work simultaneously

Product Features CHARACTERISTIC

Mechanical specifications MECHANICALSPECIFICATION

Specifications and Sizes UGS.jpg

Related accessoriesACCESSORY

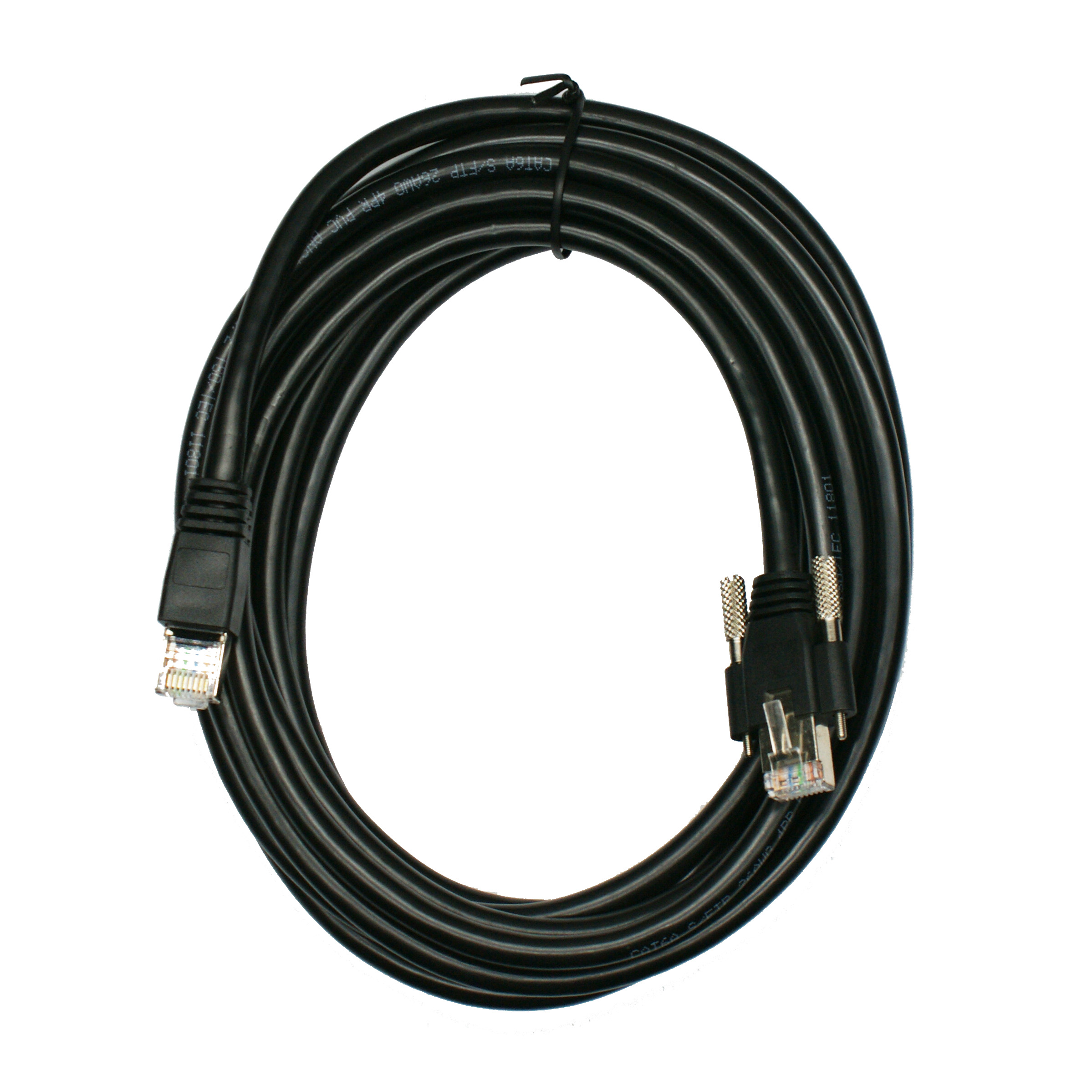

Gigabit network cable: 3M / 5M	6Pin HRS aviation head trigger line: 2M	12 VDC Power supply: 2.5M

Sensor modelShutter timeProgrammable functioncontinuous/soft trigger/hard triggerLens interface

Model	Product model	TGSMT500M
Model	Product name	5 million 1/2.5 Gigabit network industrial camera
Performance	pixel	5 million
	Sensor type	1/2.5"
	MT9P031
	Black-white/color	Black-white
	Shutter type	Scroll shutter
	resolution	2592Hx1944V
	maximum fps 14px;">15fps
	Target surface size	1/2.5 CMOS
	Cell size	2.2μmx2.2μm
	Sign-to-noise ratio	38.1dB
	Gain (multiple)	15 times
	Dynamic range	70.1dB
	0.0617-30000ms
	Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">1.4V/lux-sec(550nm)
	pixel bit depth	8/10/12bit
	pixel format	Mono 8/10/12
	Binning	Support 1×1, 1×2, 2×1, 2×2
	fps font-size: 14px;">128M Bytes
Function	Image size (ROI), photo, Shutter time, contrast, saturation, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
Shutter control	Automatic/manual/support Shutter area settings
Custom data area	4K Bytes
Collection method
White balance	White-free balance operation
Electrical characteristics	Data interface	GigE @ 1Gbps
	Transmission distance	100m
	Digital I/O	6-pin Hirose connector provides power supply and I/O: 1 optocoupler isolation input (Line0), 1Optocoupler isolation output (Line1)
	Power supply	12 VDC, supports PoE power supply
	Typical power consumption	＜3.0W @ 12VDC
Design	Exterior dimensions	29mmx29mmx43mm (excluding lens holder and interface)
	C-mount / CS-mount
	IP protection level	IP30
	Weight	66g
	temperature	Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
	Humidity	20% ~ 80%RHNo condensation
Software support	Driver	Support DirectShow components, Twain components, Halcon-specific components, OCX components
	Software support	Halcon, OpenCV, VisionPro, LabView, Matlab, etc.
	Development language	C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python
	System support	Windows, Linux, IOS, Android
	Protocol/Standard	GigE Vision, GenICam
