TGSMT1000C

Cost-effective

Having the best product cost-effectiveness in China

one-to-oneservice

Provide one-on-one professional consultation

Requirement customization

Customize diversified products according to actual needs

provide home delivery service

Convenient and fast delivery to home

24-hour after-sales service

24-hour after-sales service with peace of mind guarantee

Inquiry Now

Product

Parameter

Download

support external triggering, flash synchronization
CMOS process, scroll Shutter
Gigabit network interface with locking seat, effective transmission distance of 100 meters
Supports Windows, Android, Linux, and IOS systems
With 128M frame cache, it supports multiple cameras to work simultaneously

Product Features CHARACTERISTIC

Mechanical specifications MECHANICALSPECIFICATION

Specifications and Sizes UGS.jpg

Related accessoriesACCESSORY

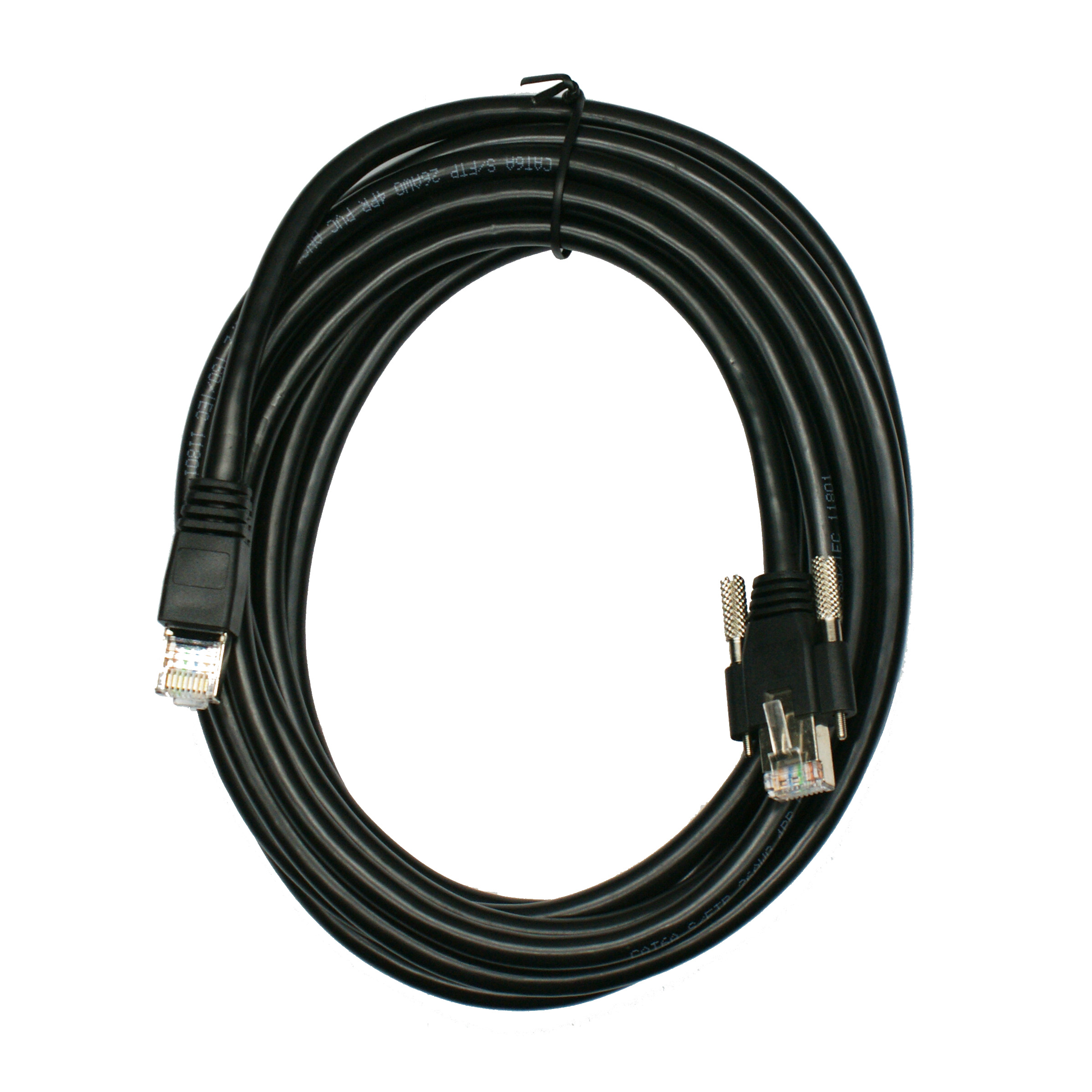

Gigabit network cable: 3M / 5M	6Pin HRS aviation head trigger line: 2M	12 VDC Power supply: 2.5M

Shutter timeProgrammable functioncontinuous/soft trigger/hard triggerProtocol/Standard

Model	Product model	TGSMT1000C
Model	Product name	10 million 1/2.3 Gigabit network industrial camera
Performance	pixel	10 million
	CMOS
	Sensor model	MT9J003
	Black-white/color	Color
	Shutter type	Scroll shutter
	Resolution	3664Hx2748V
	maximum fps 0px 1px 0px; border-style: none solid solid solid none; border-color: rgb(238, 236, 225); background-color: transparent;">7.5fps
	Target surface size	1/2.3 CMOS
	Cell size	1.67μmx1.67μm
	Sign-to-noise ratio	34dB
	Gain (multiple)	8 times
	Dynamic range	65.2dB
	0.0763-30000ms
	Scan style="font-family: arial, helvetica,sans-serif; font-size: 14px;">0.31V/lux-sec(550nm)
	pixel bit depth	8/10/12bit
	pixel format	Mono 8/10 Bayer 8/10
	Binning	Support 1×1, 1×2, 2×1, 2×2
	fps font-size: 14px;">128M Bytes
Function	Image size (ROI), photo, Shutter time, contrast, saturation, sharpness, mirror flip, color to Mono, RGB color gain, 9 sets of crosshair position colors, trigger mode, fps rate control
Shutter control	Automatic/manual/support Shutter area settings
Custom data area	4K Bytes
Collection method
White balance	Manual white balance/automatic white balance/support white balance locale settings
	Data interface	GigE @ 1Gbps
	Transmission distance	100m
	digital I/O	6-pin Hirose connector provides power supply and I/O: 1 optocouple isolation input (Line0), 1 optocouple isolation output (Line1)
	Power supply	12 VDC, supports PoE power supply
	Typical power consumption	＜3.0W @ 12VDC
Design	Appearance dimensions	29mmx29mmx43mm (excluding lens holder and interface)
look interface	C-mount / CS-mount
IP protection level	IP30
Weight	66g
temperature	Operating temperature 0℃~ 50℃, storage temperature -30℃~ 70℃
Humidity	20% ~ 80%RH Non-condensation
Software support	Driver	Support DirectShow components, Twain components, Halcon-specific components, OCX components
	Software support	Halcon, OpenCV, VisionPro, LabView, Matlab, etc.
	Development language	C/C++, VB6, VB.net, Delphi6, C#, QT, C++Builder, LabView, Python
	System support	Windows, Linux, IOS, Android
	GigE Vision, GenICam
